Special Purpose Hydraulic Press

SPECIAL PURPOSE HYDRAULIC PRESS FOR PTFE SHEET MOULDING, BILLET MOULDING

We have manufactured hydraulic presses from 600 to 1500 tones capacity. Hydraulic Presses for Lamination sheet, Plywood and Rubber blankets, manufacturing unit. Sturdy Designed for arduous working. Single and Multi daylight with window type structure and with steam heated or thermic fluid heated platens.
For Lamination, Plywood and Particle Boards

SPECIAL PURPOSE HYDRAULIC PRESS

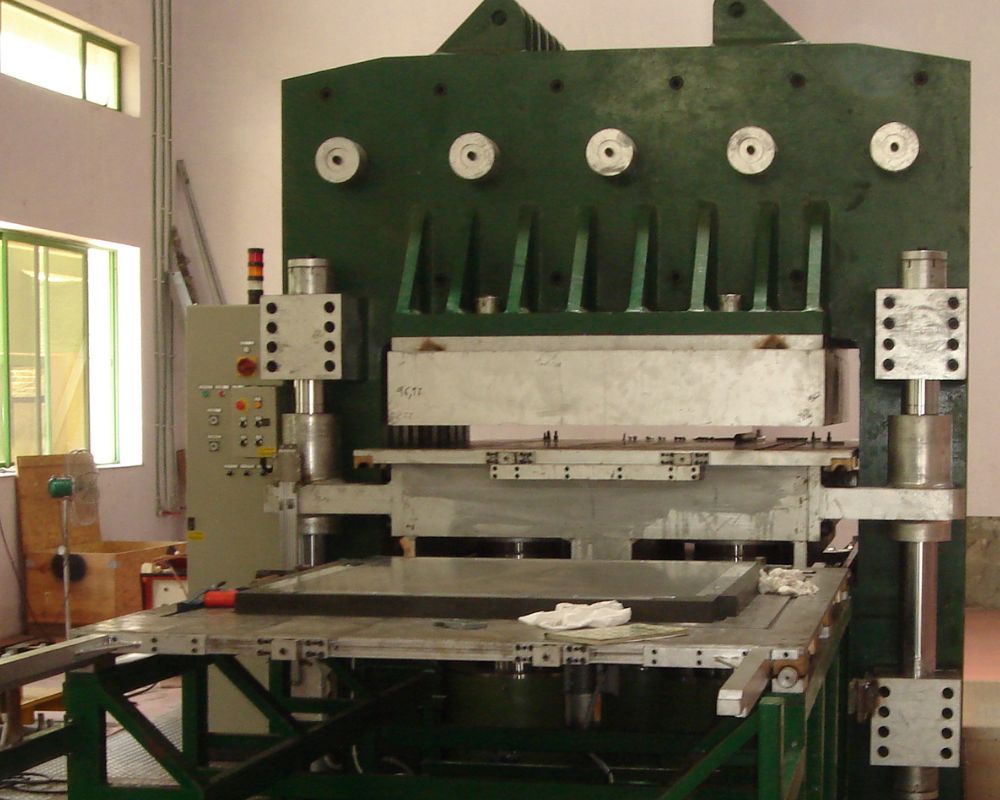

We manufacture Hydraulic Press for PTFE moulding having capacity 5 tones to 3000 tones. We have manufactured various type of presses for PTFE processing like Vertical, Horizontal, up stroke, down stroke, double acting etc. Provisions of floating platens, fix platens, and with platen insertion and removal provision.
We have designed and developed special hydraulic circuit for this field. Our presses are not just hydraulic press for this field. It’s designed and developed after due consideration of the Property of PTFE material.
Also we have designed and manufactured presses with unique die insertion and removal system. This handling system includes safety measures, time saving in processing and damages of dies.
We manufacture Hydraulically operated Extruder for PTFE tape. Electrically heating and push button operated extruder to extrude PTFE tape. Proved success product users are No.1 in the Market of end product and also bonafied vendors in aerospace industries.
From world wide pioneers like guarniflon and GFL to Indian pioneers like plastic products, sanghavi techno, DUFLON are using our hydraulic presses.
Same in extrusion products like Flu Tef Industries, Sanghavi Products to new entrepreneurs like Ruby Polymer Industries are satisfied users.

HYDRAULIC PRESS

600 TONNES
1200 TONNES
1600 TONNES
3000 TONNES

STANDARD PRESS SPECIFICATION IS AS UNDER

Capacity	600 tones or 1200 or 1600 tones OR 3000
Type	Vertical, up-stroke with gravity return.
Body	Window type Fabricated structure.
Platens	Steam heating or thermic fluid heating type.
Hyd. Cylinders	4 Nos. or 6 Nos. or 8 Nos. or 12 Nos.
Rams	Hard-Chrome Plated.
Stroke	About 650 mm.(As per requirement)

STANDARD PRESS SPECIFICATION IS AS UNDER

Daylight	Multi daylights. From 7 Nos. to 12 Nos.
Daylight-Gap	80 mm to 120 mm.( As per requirement)
Travel	Fast approach speed 450 mm/m & slow compression 45 mm/m with an automatic changeover.
Pressure Dwell	Provision of Pressure-Dwell for set period.
Power Pack	Complete with Elect. Motor, Hydraulic Pumps, manually operated controls, Pressure & Temp. Indicator, Oil reservoir & pipe connections.

Capacity	Type	Stroke	Daylight (Clean) Adjustable by Floating Platen	Table Size in mm.	Fast Approach Speed	Slow Compression Speed
5 tones	Down Stroke	400 mm	1000 mm	400 x 400	400 mm/m	50 mm/m
10 tones	Down Stroke	400 mm	1250 mm	400 x 400	400 mm/m	50 mm/m
15 tones	Down Stroke	400 mm	1250 mm	400 x 400	400 mm/m	50 mm/m
25 tones	Down Stroke	400 mm	1250 mm	400 x 400	400 mm/m	50 mm/m
50 tones	Down Stroke	450 mm	1600 mm	650 x 650	300 mm/m	30 mm/m
75 tones	Down Stroke	600 mm	1250 mm	750 x 600	300 mm/m	30 mm/m
175 tones	Up or Down Stroke	500 mm	2000 mm	750 x 750	300 mm/m	30 mm/m
250 tones	Up or Down Stroke	400 mm	1200 mm	900 x 900	300 mm/m	30 mm/m
350 tones	Up Stroke	400 mm	1200 mm	750 x 750	300 mm/m	30 mm/m
500 tones	Up or Down Stroke	400 mm	1200 mm	1000 x 1000	300 mm/m	30 mm/m
750 tones	Up Stroke	400 mm	1200 mm	1200 x 1200	300 mm/m	30 mm/m
1250 tones	Up Stroke	400 mm	1200 mm	1200 x 1200	300 mm/m	30 mm/m
2400 tones	Up Stroke	400 mm	600 mm	1725 x 1725	300 mm/m	30 mm/m
35 tones extruder	Horizontal	1100 mm stroke, 675 mm clear gap between material holding cylinder and piston end, barrel length 1100 mm, bore 100 mm. Speed 20mm/m to 5mm/m.
